Industry: Logistics Infrastructure
Partners: ERG
Client: Marble Sachanas S.A. – Production center
Category: Mobile Structure
Location: Kavalari, Central Macedonia, Greece
Date: 2023
ERG buildings
ERG buildings are manufactured with resistant and strong materials. The steel selected for the structure is able to withstand difficult weather conditions, whereas the PVC fabric sheet is capable of preventing condensation and
humidity.
These buildings are provided with galvanized steel structure and PVC fabric previously subjected to specific treatments to ensure insulation and protection against mold and condensation.
As far as the opening and closing mechanism is concerned (in case of mobile type), the steel structure comes with wheels sliding on metallic guide rails. The latter is equipped with a protection device that ensures durability over the
entire system.
The tensioned PVC fabric curtains are designed to withstand wind force thanks to specific devices, e.g. strong straps.
Frontal structures are adaptable to different working environments, such as agriculture and industrial sectors.
Dimensions
W: 16.40′ – 5m
L: 26.24′ – 8m
H: 9.84′ – 3m
Area: 430.33sqft – 40m2
Description
Build with galvanized steel structure with PVC fabric and has the ability to “open” and “close” in length up to 80%. There are wheels on the bottom of the blocks that can drive on rail-drive system.
SEISMIC CONSTRUCTION
Color: RAL 9016

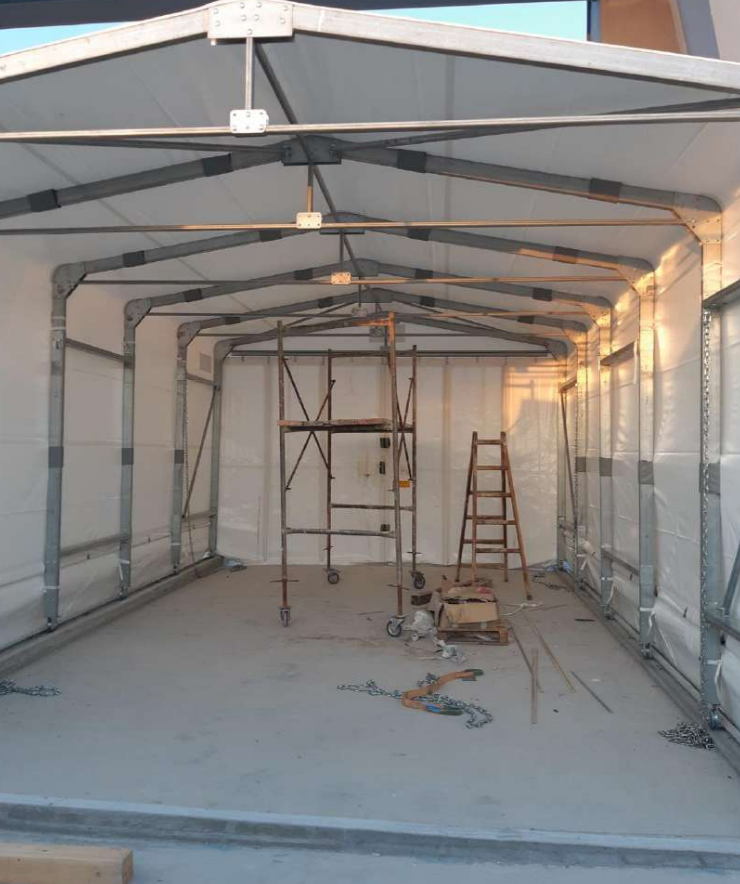

View of opening for connection with the existing building.
View of sliding curtain and the drive system.
